Blackmagic Design Blackmagic Pocket Cinema Camera Kit USA

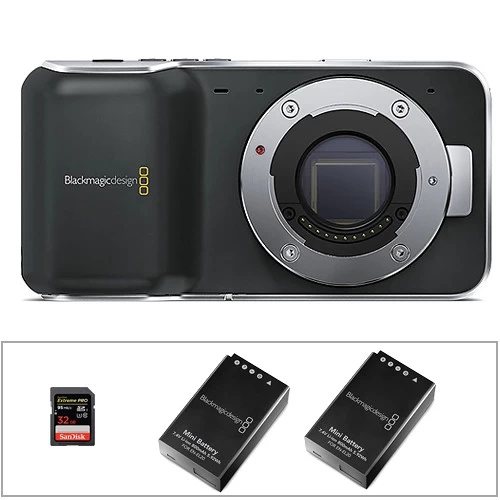

The Blackmagic Design Pocket Cinema Camera with Two Spare Batteries and 32GB Memory Card is a bundle from B&H that in addition to the Pocket Cinema Camera, features two spare EN-EL20-type batteries and a 32GB SDHC memory card. The Pocket Cinema Camera is a video camera that follows the form factor of a mirrorless photo camera with a 1920 x 1080 resolution, Super 16mm-sized sensor and a Micro Four Thirds (MFT) lens mount. Not only does the MFT mount allow the camera to support many MFT-native lenses, because of the shallow flange focal distance, it can be adapted to a variety of third-part lenses, included Nikon, Canon, as well as many rangefinder systems.

Blackmagic Design Pocket Cinema Camera 4K Specs

Image Sensor

Sensor Size18.96 x 10 mm (4/3″)

Sensor TypeCMOS

Shutter TypeRolling Shutter

ISO100 to 25,600 (Expanded)

Advertised Dynamic Range13 Stops

Camera

Lens MountMicro Four Thirds

Lens CommunicationYes

Built-In ND FilterNone

Built-In Microphone TypeStereo

Variable Frame RatesUp to 120 fps

Internal Recording

Raw RecordingRaw:

4096 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps (21 to 203 MB/s)

4096 x 1712 at 23.98/24/25/29.97/30/50/59.94/60/75 fps

2880 x 2160 at 23.98/24/25/29.97/30/50/59.94/60/80 fps

2688 x 1512 at 23.98/24/25/29.97/30/50/59.94/60/75/120 fps

Recording ModesProRes 422HQ:

4096 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (117.88 MB/s)

3840 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (110 Mb/s)

1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60/120 fps (27.5 MB/s)

ProRes 422:

4096 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (78.63 MB/s)

3840 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (73.6 MB/s)

1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60/120 fps (18.4 MB/s)

ProRes 422LT:

4096 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (54.63 MB/s)

3840 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (51 MB/s)

1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60/120 fps (12.75 MB/s)

ProRes 422 Proxy:

4096 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (24.25 MB/s)

3840 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (22.4 MB/s)

1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60/120 fps (5.6 MB/s)

Still Image SupportNone

External Recording

Video Output4:2:2 10-Bit via HDMI:

1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps

Raw OutputUSB:

4096 x 2160 12-Bit at 23.98/24/25/29.97/30/50/59.94/60 fps

3840 x 2160 12-Bit at 23.98/24/25/29.97/30/50/59.94/60 fps

1920 x 1080 12-Bit at 23.98/24/25/29.97/30/50/59.94/60 fps

Interfaces

Video Connectors1 x HDMI Output

Audio Connectors1 x Mini XLR Mic/Line Level (+48 V Phantom Power) Input

1 x 1/8″ / 3.5 mm Stereo Mic/Line Level Input

1 x 1/8″ / 3.5 mm Stereo Headphone Output

Other I/O1 x USB Type-C Video Output

1 x 3.5 mm Timecode Input (Shared with 3.5 mm Mic/Line input)

Wireless InterfacesBluetooth Control

Display

Display TypeFixed Touchscreen LCD

Size5″

Resolution1920 x 1080

EVF

EVFOptional, Not Included

Power

Battery TypeCanon LP-E6

Power Connectors1 x Weipu SF610/S2 Input

Environmental

Operating Temperature32 to 104°F / 0 to 40°C

Storage Temperature-4 to 113°F / -20 to 45°C

Operating Humidity0 to 90%

General

Accessory Mount1 x 1/4″-20 Female

Tripod Mounting Thread1/4″-20 Female

Material of ConstructionCarbon Fiber

Dimensions7 x 3.8 x 3.4″ / 177.8 x 96.52 x 86.36 mm

Weight1.5 lb / 680.38 g

Packaging Info

Package Weight3.15 lb

Box Dimensions (LxWxH)10.75 x 7.6 x 5.85″
