The XF300 Professional Camcorder represents Canons entry into professional solid state video acquisition. Following on the heels of its widely respected XH line of tape-based camcorders, the XF300 takes advantage of the latest HD technology–along with Canons newly developed MPEG-2 4:2:2 codec–to record Full HD video to affordable Compact Flash cards.

Nearly everything youd want in a handheld, pro-level camcorder is here in one sleek package: three 1920 x 1080 CMOS sensors, multiple bit rates (up to 50Mbps), variable resolution and frame rates, industry-standard MXF file wrappers, a newly developed L-Series 18x zoom lens, HDMI/Component/Composite outputs, and full image customization. With its exceptional levels of image quality, ergonomics, and control, the XF300 is the perfect tool for applications such as ENG, documentaries, independent features, and event videography.MPEG-2 50Mbps Codec

Canons adaptation of MPEG-2 for the XF300 Professional Camcorder, named the Canon XF Codec, ensures the widest compatibility with existing industry infrastructure and non-linear editing (NLE) systems. And by using an MXF file wrapper, video and audio can be wrapped in a single file along with important metadata. The codecs 50Mbps constant bit rate provides the bandwidth needed to capture the XF300s superior resolution and color in spectacular detail.

4:2:2 Color Sampling

The XF300 supports the highest HD quality, with Full HD 1920 x 1080 resolution, up to 50Mbps bit rate and 4:2:2 color sampling. 4:2:2 color sampling provides twice the color resolution of HDV and other codecs that use 4:2:0 color sampling. 4:2:2 provides ultra-fine transitions in tone and color and maintains the highest quality image for use in post production processes such as chroma keying, color grading, advanced compositing and effects.

Record to Compact Flash Cards

Unlike other camcorders using proprietary memory systems, the XF300 records to cost effective and readily available Compact Flash (CF) cards. The camcorder features two CF card slots and offers versatile recording functions including relay recording, hot swapping, file copy & backup, and pre-record.

File-based recording facilitates workflow by reducing transfer times when moving video to nonlinear editing (NLE) systems. Additionally, metadata can be input at image acquisition, and imagery may be reviewed immediately after recording to ensure every shot is captured and logged correctly.

Three Canon Native 1920 x 1080 CMOS Image Sensors

Newly designed and manufactured exclusively by Canon, the XF300 camcorder incorporates three native 1920 x 1080 CMOS image sensors, which deliver outstanding Full HD video recording with minimal noise. These 1/3-inch sensors enable a compact lens and body design, for greater mobility and quick shooting.

Multiple Bit Rates, Resolution, & Frame Rates

Multiple recording modes, resolutions and frame rates make the XF300 Professional Camcorder creatively flexible and able to work in virtually any production environment. From the highest quality 50Mbps Full HD, to the HDV compatible 25Mbps, users will find the camcorder capable of taking on any job. The XF300 Professional Camcorder also offers a full range of selectable frame rates. You can choose between 60i, 60p, 30p and 24p settings to achieve just the look you want.

Canon DIGIC DV III Image Processor

The XF300 features Canons powerful DIGIC DV III Image Processor, which provides enhanced shading, lifelike tonal gradations, new custom picture settings and lower power consumption. DIGIC DV III is also the high-speed engine which powers Genuine Canon Face Detection. On-the-go videographers will appreciate the ability to track one subject in a crowd of people.

Genuine Canon 18x HD L-Series Lens

Inspired by the same high level of optical precision used in Canon broadcast and photographic lenses, the Canon XF300 Professional Camcorder incorporates a Genuine Canon 18x HD L-Series lens that features a wide and impressive zoom range of 29.3 – 527.4mm (35mm equivalent). The lens incorporates High Index – Ultra-low Dispersion (HI-UD), Ultra-low Dispersion (UD) and aspherical elements to minimize chromatic aberration while delivering a resolution of 1,000 TV lines.

Instant AF

When shooting high definition video, sharp focus becomes more critical than ever. Canons proprietary Instant AF system combines an external AF sensor with Canons legendary auto focus system for fast and accurate focus. Together, the two sensors reduce focusing time–even in low-light, low contrast, or high brightness situations–and improve focusing performance on difficult subjects.

SuperRange Optical Image Stabilizer

The XF300 also incorporates a newly designed SuperRange Optical Image Stabilization system (lens shift) with three modes: Standard, Dynamic and Powered.

Slow Motion & Fast Motion

Slow and Fast Motion Modes allow the XF300 to record a different frame rate than the playback frame rate, resulting in either a fast or slow motion effect during playback. Since the camera is recording real frames and modifying the playback rate, there is no quality loss and maximum image quality is maintained.

Interval Recording

With this feature, users can program the camera to record a specified number of frames at specified intervals. The technique can be used to observe natural phenomena over extended periods, making it ideal for time-lapse applications. The interval can be set in 25 levels ranging from 1 second to 10 minutes. Frame recording is also possible, allowing a specified number of frames to be recorded–ideal for projects such as clay animation.

Brilliant Ergonomics

The XF300 sets a new standard for ergonomic design in compact pro camcorders. It is designed from the ground up to maximize handheld shooting comfort and usability. Controls are ideally placed making the camera feel like a natural extension of the operators body. Additionally, the XF300 features a redesigned layout to make using the camcorder highly intuitive. New users and users switching from other products will find the button layout, camera menu system and camera controls immediately familiar.

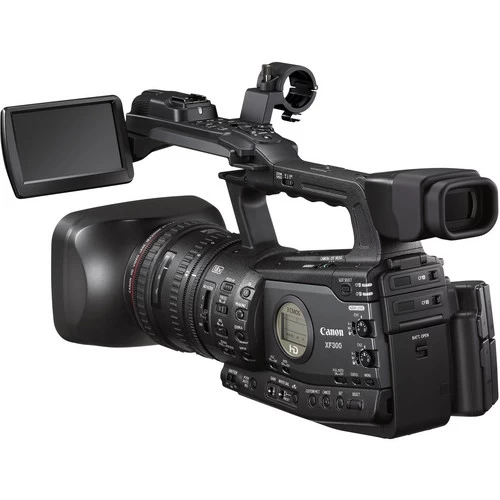

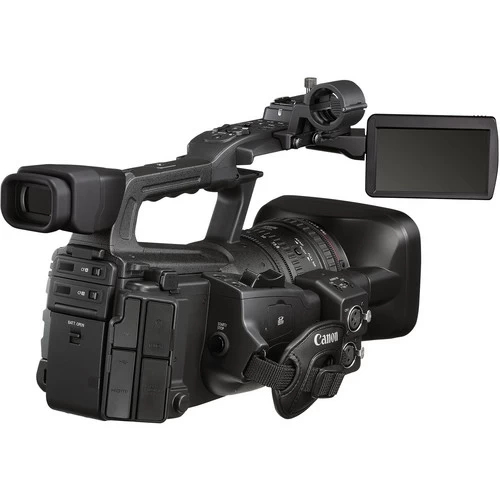

4 1.23MP LCD Monitor

A 4 1.23-megapixel LCD monitor provides a large, accurate area for critical focus confirmation and approximately 100% field of view. The display is freely rotating–able to open on both the right and left side of the camera body. The display also features an additional 35° of forward movement past normal position.

High Resolution, 1.55MP Viewfinder

The XF300 features a 0.52 1.55 Megapixel Color EVF and approximately 100% field of view coverage for comfortable viewing and accurate judgment of composition, focus and color. The angle of the viewfinder is adjustable for additional user comfort and when using the LCD display for monitoring. The EVF can be used as a cheek pad to ensure three points of contact when hand holding and maximizing stability. This makes the camcorder much easier to manage during extended recording periods and long days of shooting.

Edge Monitor Focus Assist System

With Canons new Edge Monitor Focus Assist system, a red and green monitor is shown at the bottom of the LCD display and three red focus check areas are shown across the display. The green waveform shows overall focus of the image, while the red waveform shows the focus status of the focus check boxes. Through this dynamic focus feedback, the user can intuitively tune focus in a scene and quickly change the zone of focus.

Peaking/Magnify

Two peaking modes and a magnify focus assist function are available in standby and record mode (LCD monitor and EVF), making it extremely easy for the XF300 operator to check and confirm critical focus.

Exceptional Customization

Users of the XF300 have full manual control of all camera functions to adapt to both technical and artistic challenges when shooting. For maximum customization, users have access to Custom Picture Setti
